HOW SAFESET IMPROVES ANCHOR INSTALLATION

Fully approved, safer and more productive installations at your jobsite

Anchor installation with SafeSet system
SafeSet system for the reliable and simple installation of anchors and rebar connections

SafeSet is the Hilti system for setting anchors and post-installed rebar connections.

SafeSet helps ensure that anchors can carry their maximum load values safely, minimising the risk of anchor failure. It’s designed to speed up the installation of anchors and rebar connections to make them safer and more reliable.

All SafeSet components are covered by international approvals and work seamlessly as a system. SafeSet meets the requirements of Standards Australia SA TS 101:2015 / AS 5216:2018 referenced in the National Construction Code (NCC).



HOW SAFESET IMPROVES ANCHOR INSTALLATION

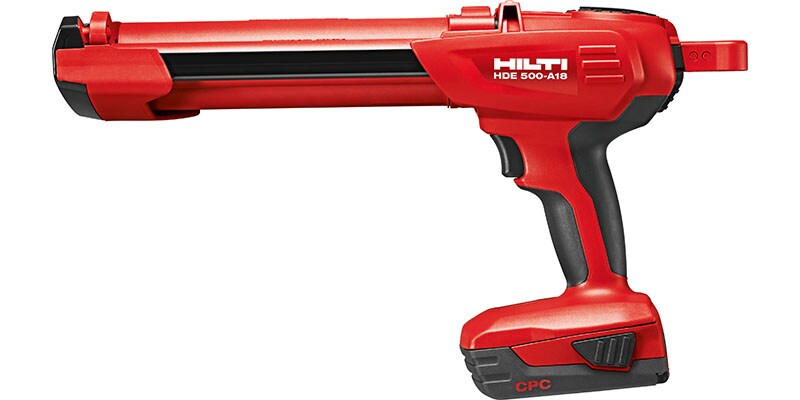

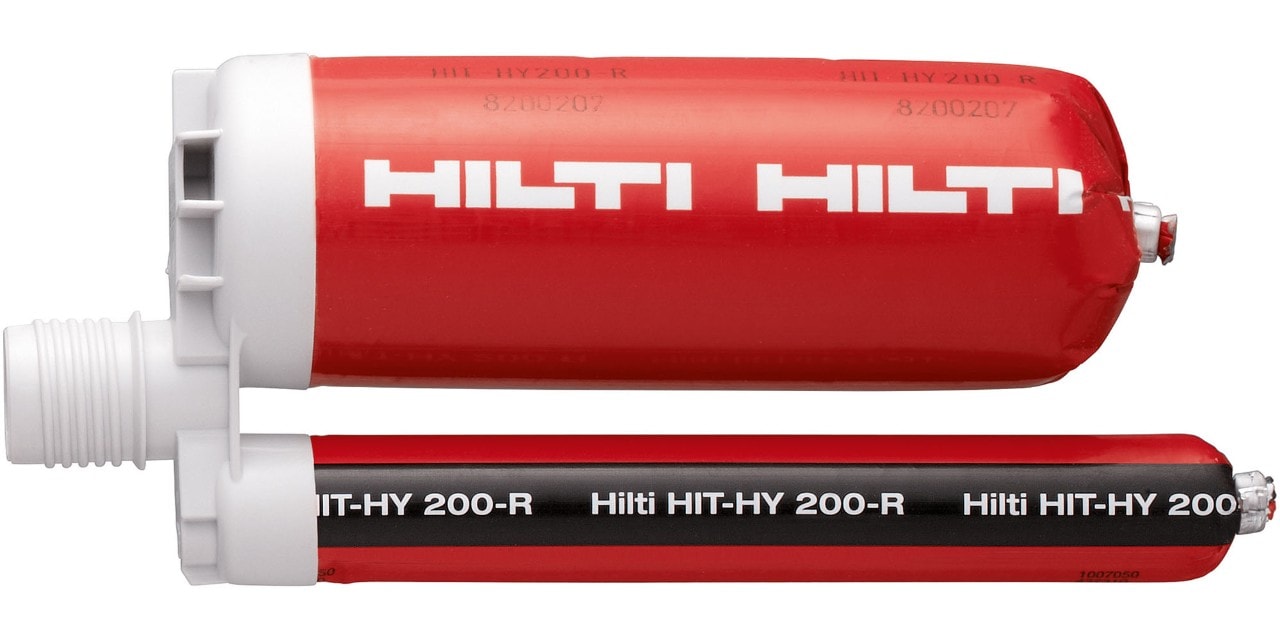

SafeSet system with cordless battery dispenser HDE 500-A22 and ultimate-performance hybrid mortar HIT-HY 200

Highly reliable

SafeSet components work intuitively as a system to reduce potential mistakes during installation work. SafeSet achieves reliability and security by eliminating steps that negatively impact anchor and rebar performance.

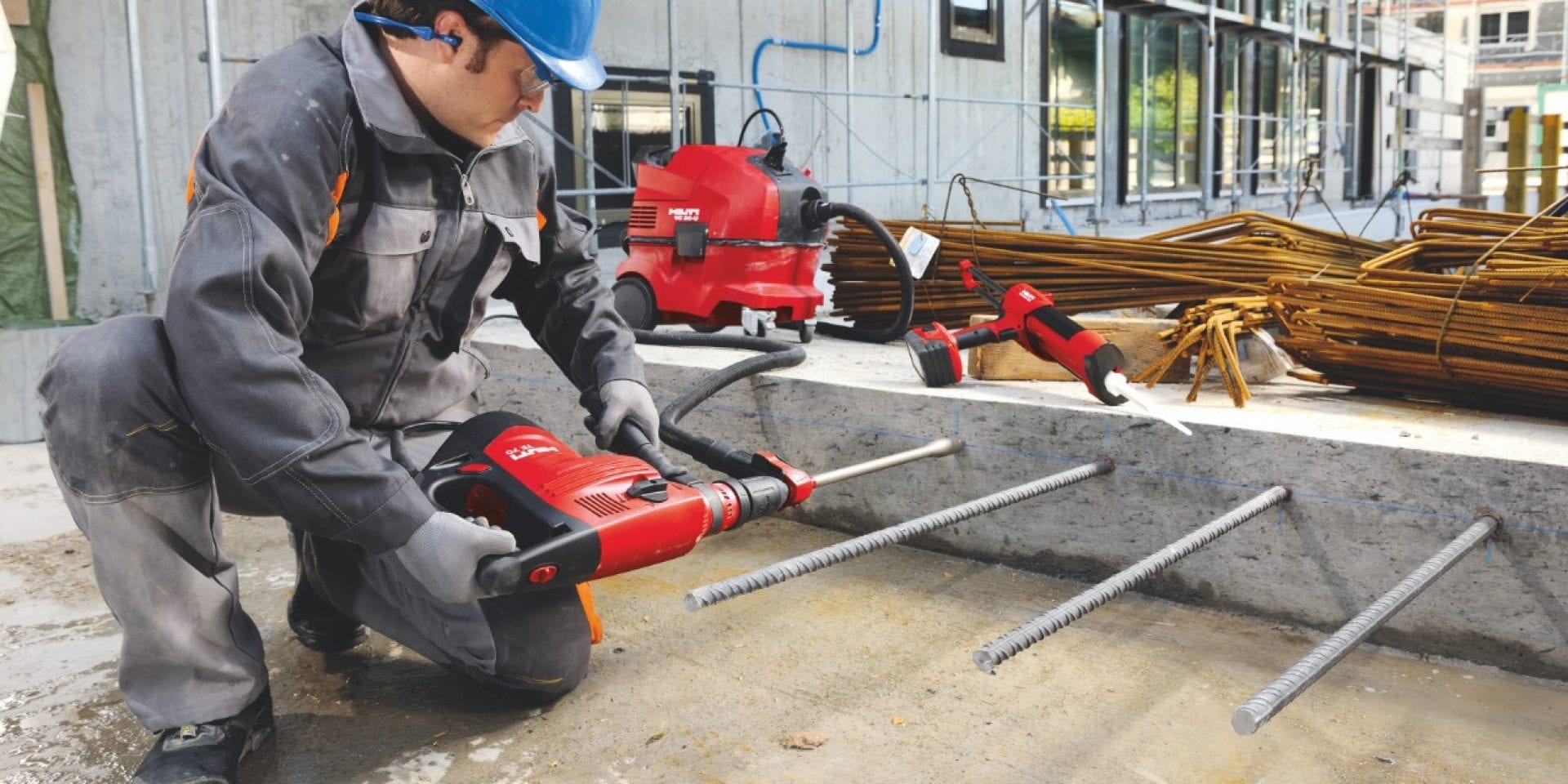

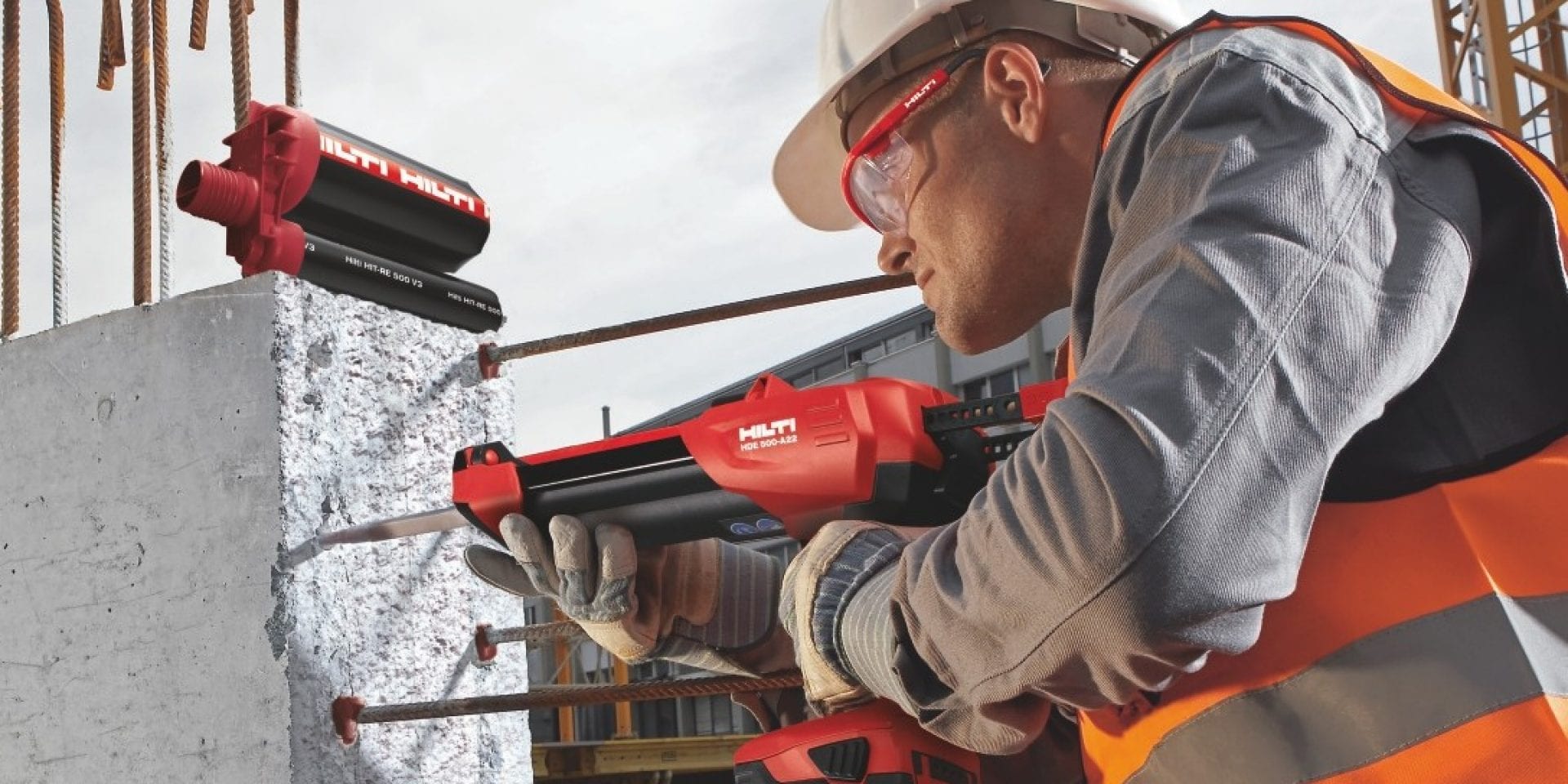

Rebar installation with SafeSet system

Simply productive

The SafeSet system solution is easy to use and offers a faster installation process. It eliminates the most time-consuming steps, such as hole cleaning, so installations can be made in half the time compared to traditional methods.

ICC ES approval for the Hilti SafeSet system

Fully approved

Innovatively designed and stringently tested, SafeSet systems carry world-class approvals from renowned third-party institutions.

SafeSet meets the requirements of Standards Australia SA TS:101 2015, referenced in the National Construction Code (NCC).

WATCH THE VIDEO NOW

Contact us

  • Do you have a technical question? Don’t hesitate to contact us!

    131 292

HAMMER-DRILLED HOLES

AUTOMATIC CLEANING

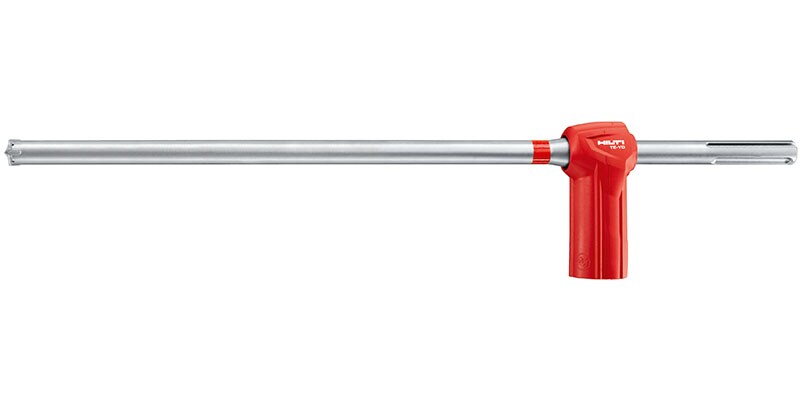

SafeSet system for hammer-drilled holes with hollow drill bit

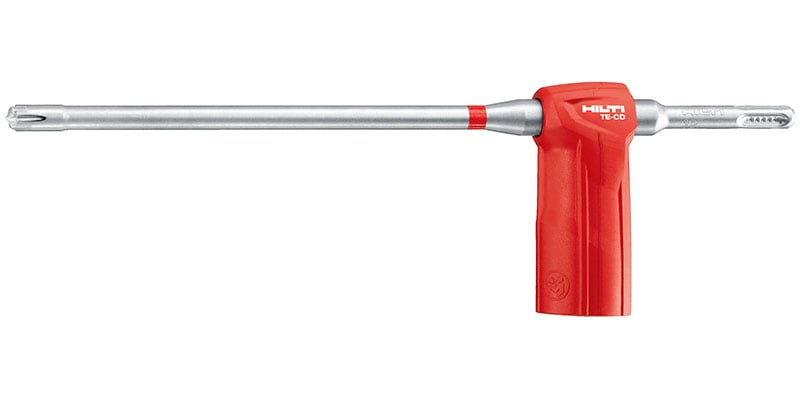

Eliminate extra steps with our hollow drill bits

Clean holes as you drill with our TE-CD (SDS-Plus) or TE-YD (SDS-Max) hollow drill bits connected to the VC 20/40 concrete dust vacuum system and eliminate six manual steps as the dust is then removed automatically.

Just drill the hole, inject the adhesive and set the anchor.

NO CLEANING REQUIRED

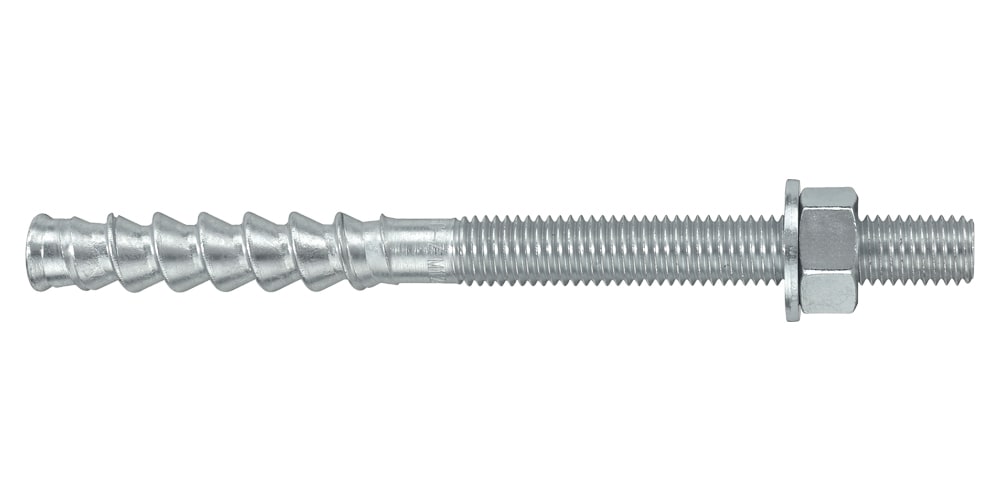

Cone-shaped helix of HIT-Z anchor

Inject the adhesive and install the anchor

Simply skip the hole-cleaning step.

Just start drilling, inject the HIT-HY 200 adhesive and install the HIT-Z anchor.

It’s cone-shaped helix works as a torque-controlled bonded anchor. Because of their shape, HIT-Z anchor rods are not affected by uncleaned holes when used together with HIT-HY 200.

SafeSet Method vs. Traditional Method

SafeSet method vs. traditional method from drilling to installation anchors
1 / 2
Automatic cleaning with our hollow drill-bit

2 / 2
More reliability with the HIT-Z anchor rod

DIAMOND-DRILLED HOLEs

Save time and achieve a better bond

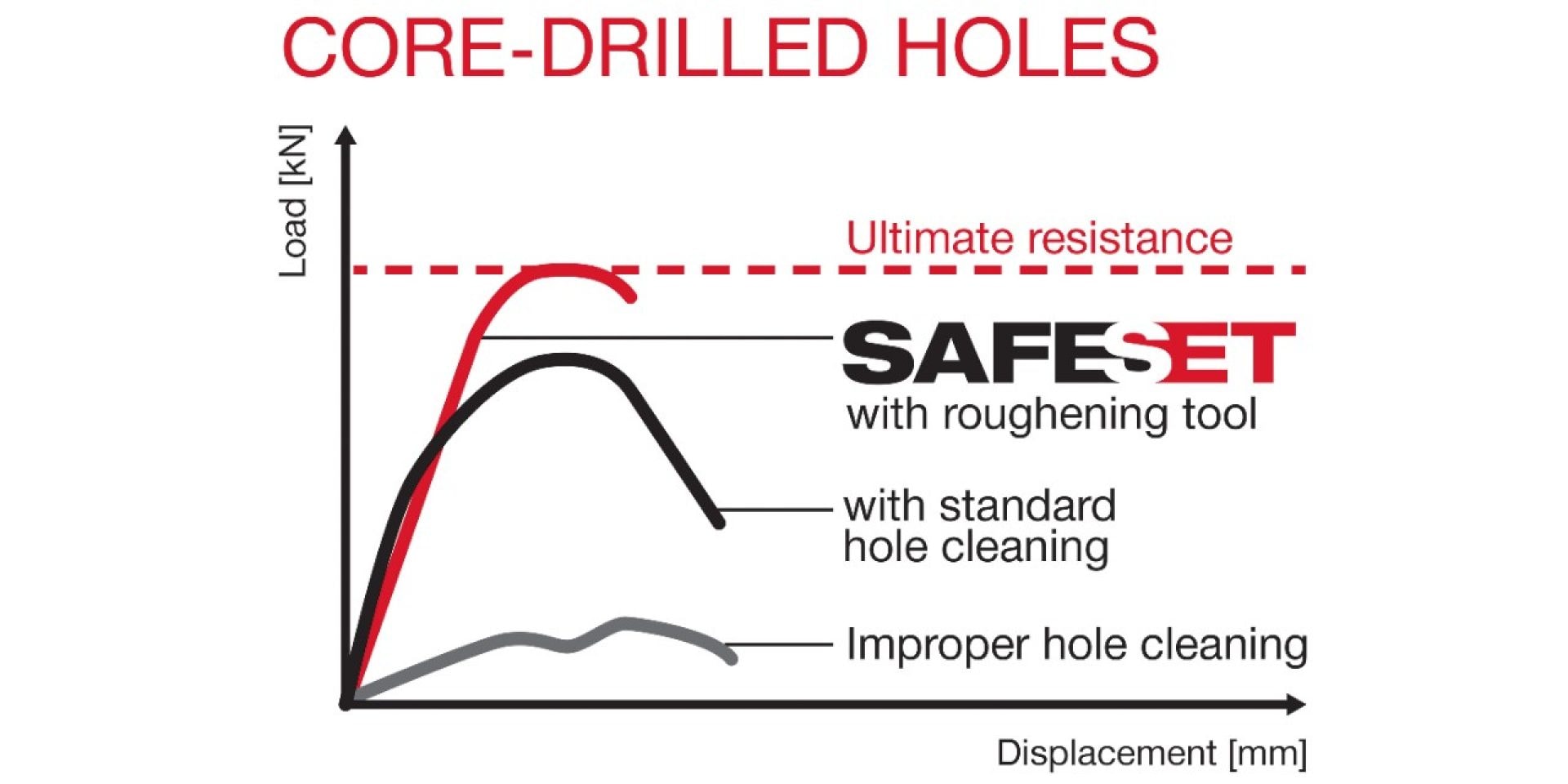

SafeSet system for diamond-drilled holes showing load values and displacement for anchors

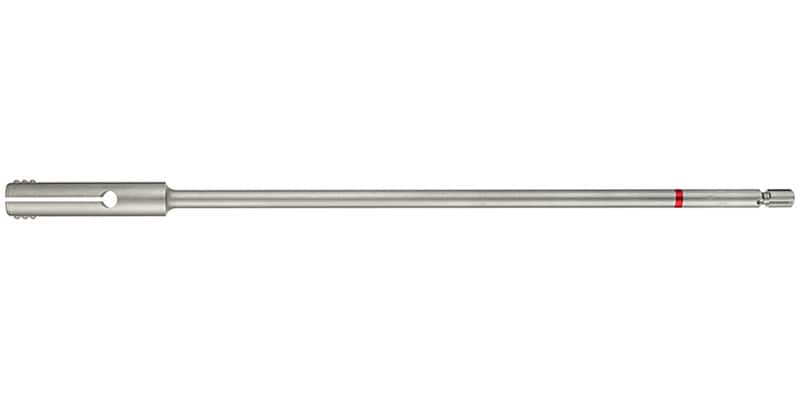

Raise bond strength with our roughening tool

The Hilti TE-YRT roughening tool is designed to roughen a diamond-drilled hole in order to achieve the necessary bond between the epoxy and the concrete.

It raises the bond strength in diamond-cored holes up to that of hammer-drilled holes and reduces the amplification factor of the minimum anchorage length required by Eurocode 2 to 1.0

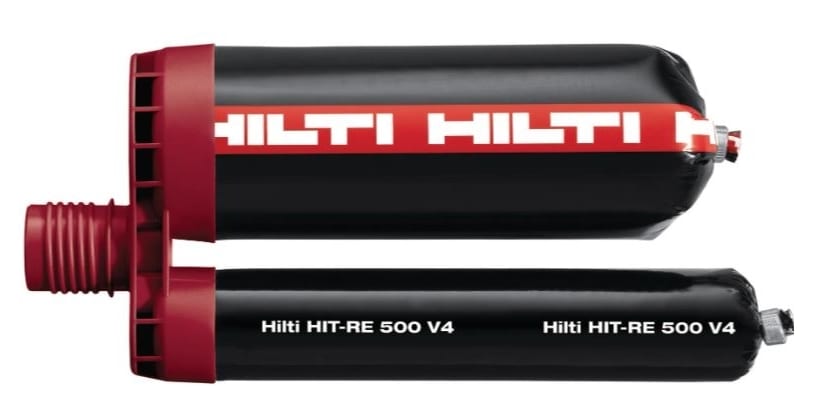

The roughening tool combined with HIT-RE 500 V3 achieves a time saving of 30% with core-drilled holes by reducing the need for cleaning.



Diamond-cored hole with and without roughening

Please enter alternative text here (optional)

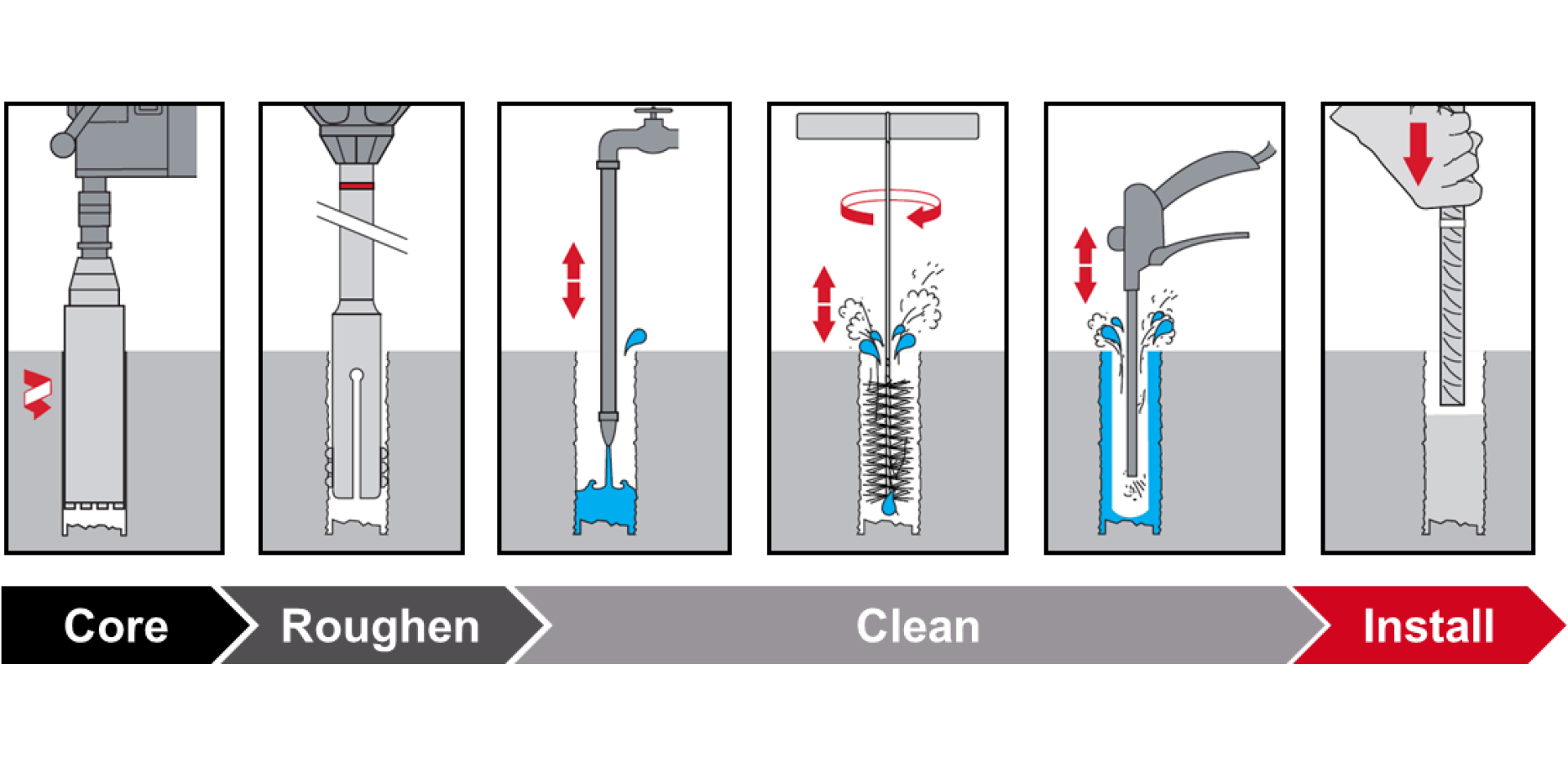

From coring to installation

From coring to installation

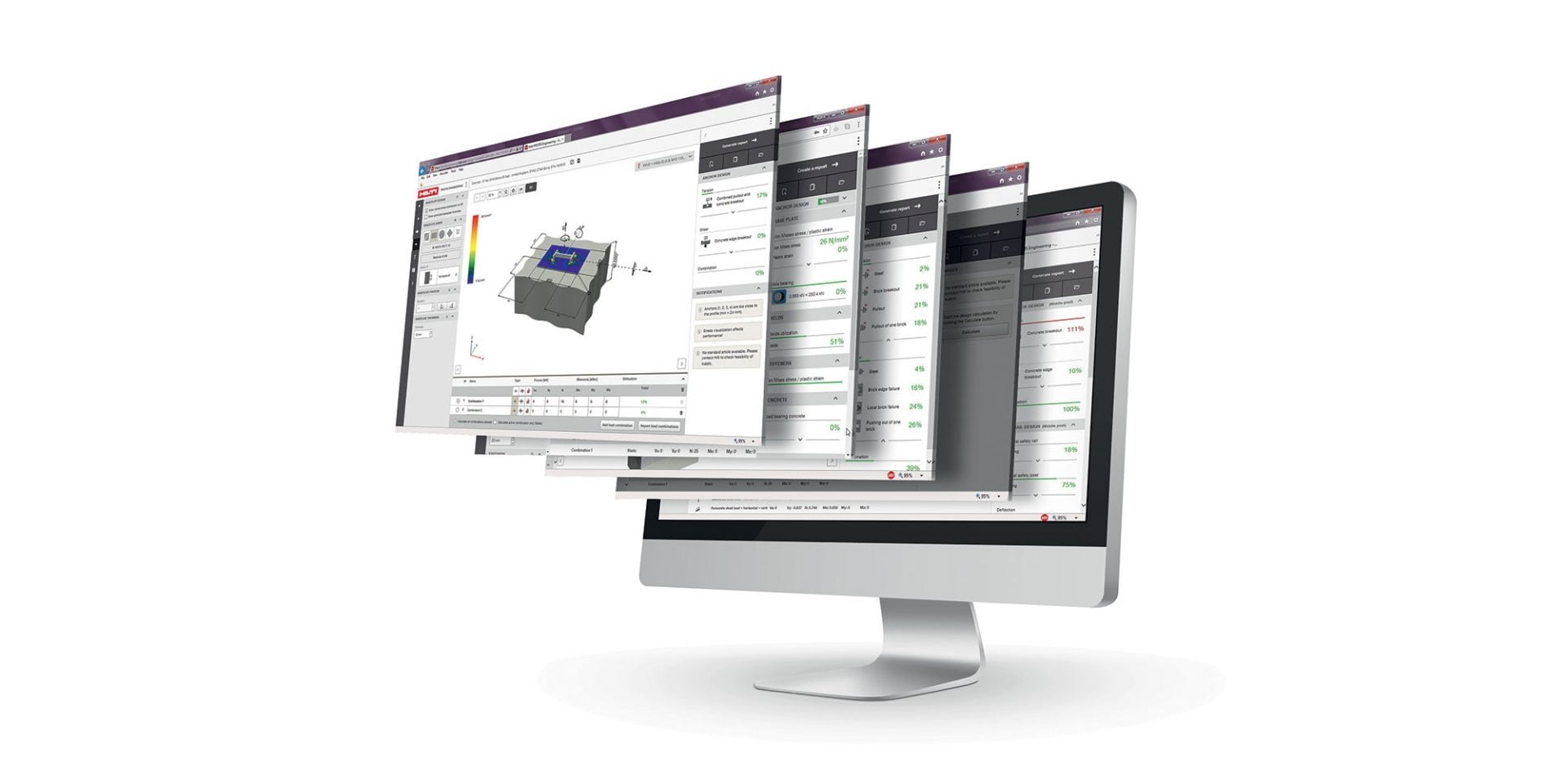

Hilti PROFIS Engineering Software

Hilti PROFIS Engineering Software

Design safer, reliable anchor systems more efficiently than ever

Find out more
Reliable approved SafeSet method installing rebar connections

REBAR SOLUTIONS

SafeSet makes rebar installation safer and more productive

Find out more

Start benefitting from SafeSet
